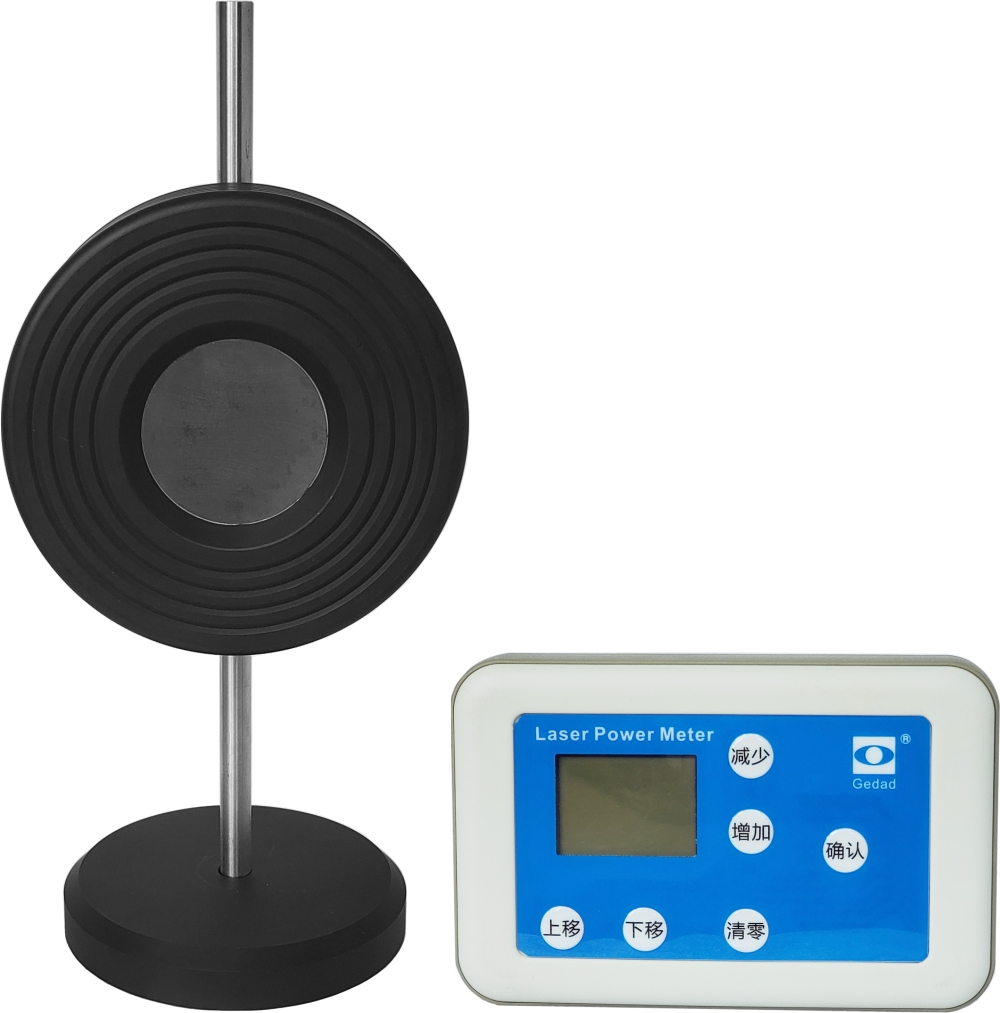

，model LP-CW-50, using the calorimetric absorption measurement principle, the spectral response range is 190nm ~ 25μm, this laser power meter has the following characteristics： large target probe aperture; uniform detector surface with flat spectral response characteristics; suitable for multi-band measurement, wide spectral range; short response time, better stability; simple operation, LCD digital display Easy to use.
This power meter is independently developed by our R & D team combined with many years of use experience, and can be widely used in scientific research, industry, measurement and other fields. The product has stable performance and reasonable price, and provides long-term after-sales service. If necessary, please contact our business department.
Product parameters：
|
product name |
Photothermal laser power meter |
|
Product model |
LP-CW-50 |
|
Product application scope |
Continuous laser power measurement |
|
Spectral response range |
190nm~25μm |
|
Measuring range |
100mW~50W |
|
Response time |
2s |
|
refrigerating method |
Natural air cooling |
|
Operating temperature |
Room temperature |
|
Effective aperture of the probe |
φ50mm |
|
Measurement error |
<±3% |
|
power supply |
DC 12V±10% |
|
Power consumption |
＜3W |
|
Product size (table header) |
Length * width * height：125*29*81mm |
|
Product size（Probe） |
diameter：125mm ；thickness：37mm |
|
product weight |
about 1.6 KG |
|
warranty period |
12 months |
